An innovative enterprise specialising in the development and application of laser technology

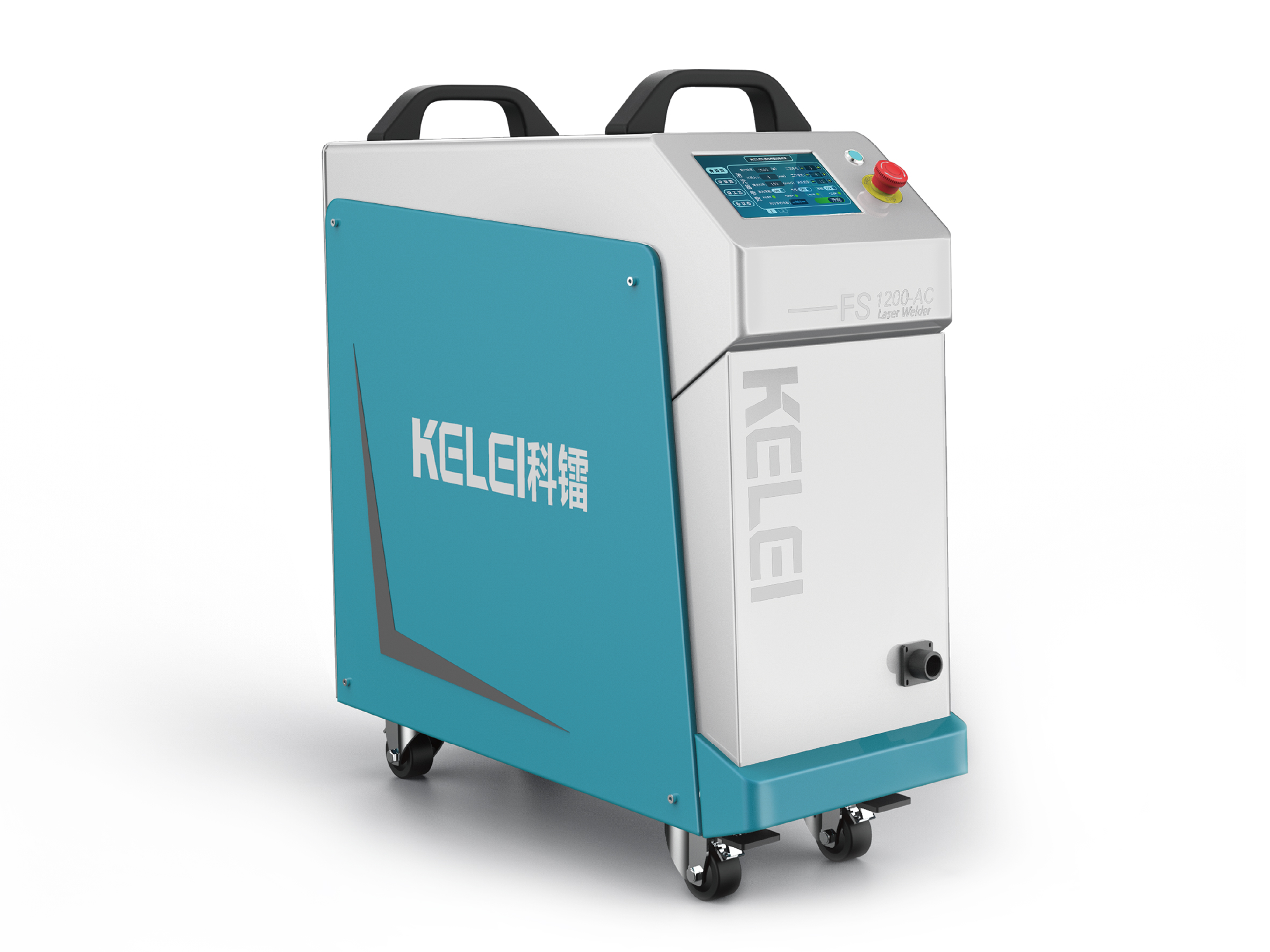

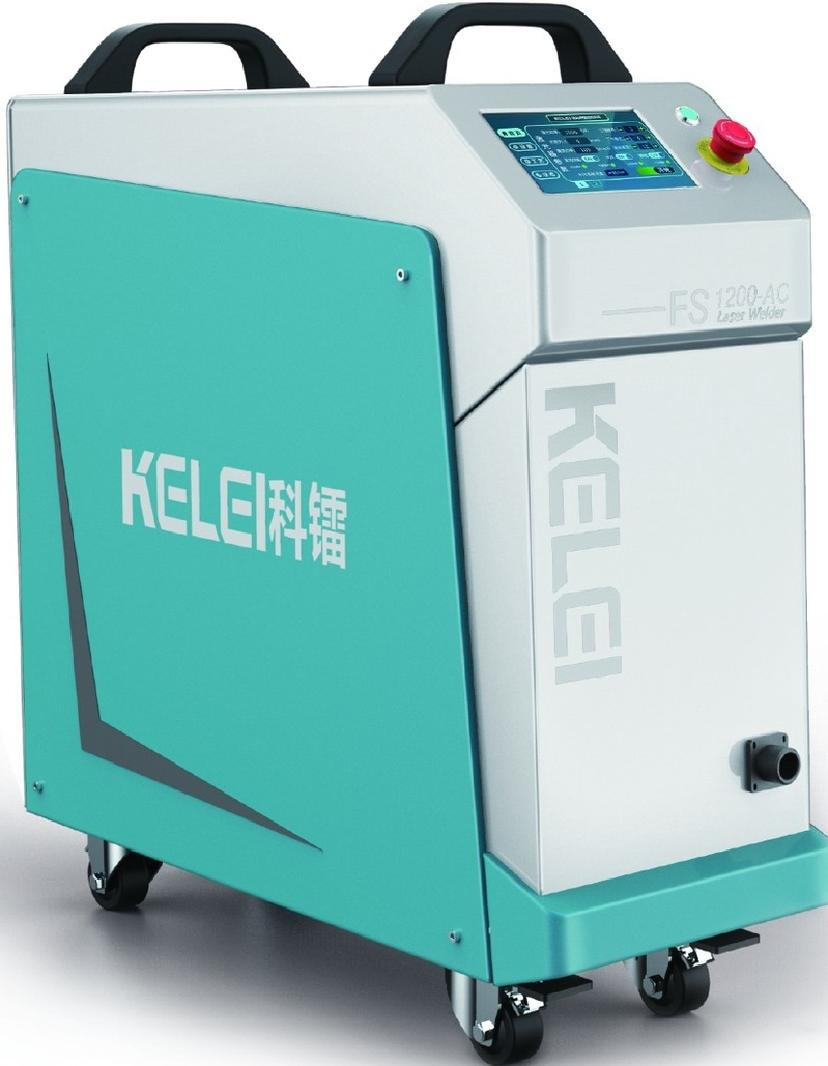

Laser cleaning machine

  • Detailed Description

Cleaning System — Laser Cleaning Machine

The laser cleaning machine possesses the following characteristics:


■The independently developed control system incorporates multiple safety alerts, features a more compact design, offers flexible operation, and is straightforward to master.

■All parameters are visible, enabling real-time monitoring of the entire machine's status. This facilitates proactive issue avoidance, streamlines troubleshooting and resolution, ensures stable operation of the cleaning head, and delivers superior cleaning quality.
■Stable parameters, high repeatability
■With the nozzle air pressure and lens condition fixed, provided the laser power remains stable, the process parameters will be reproducible.
■Significantly enhances efficiency while simultaneously reducing operator requirements.

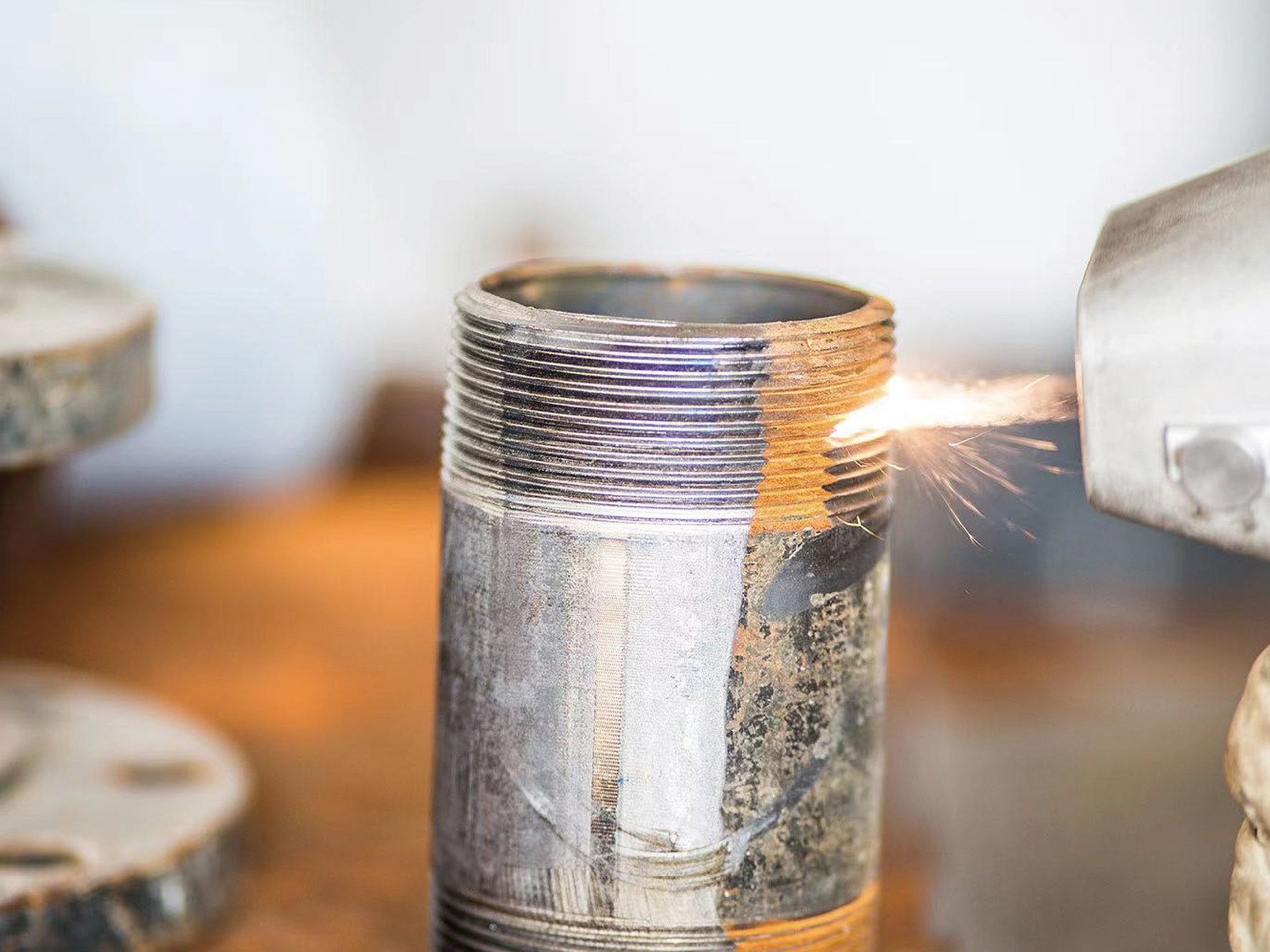

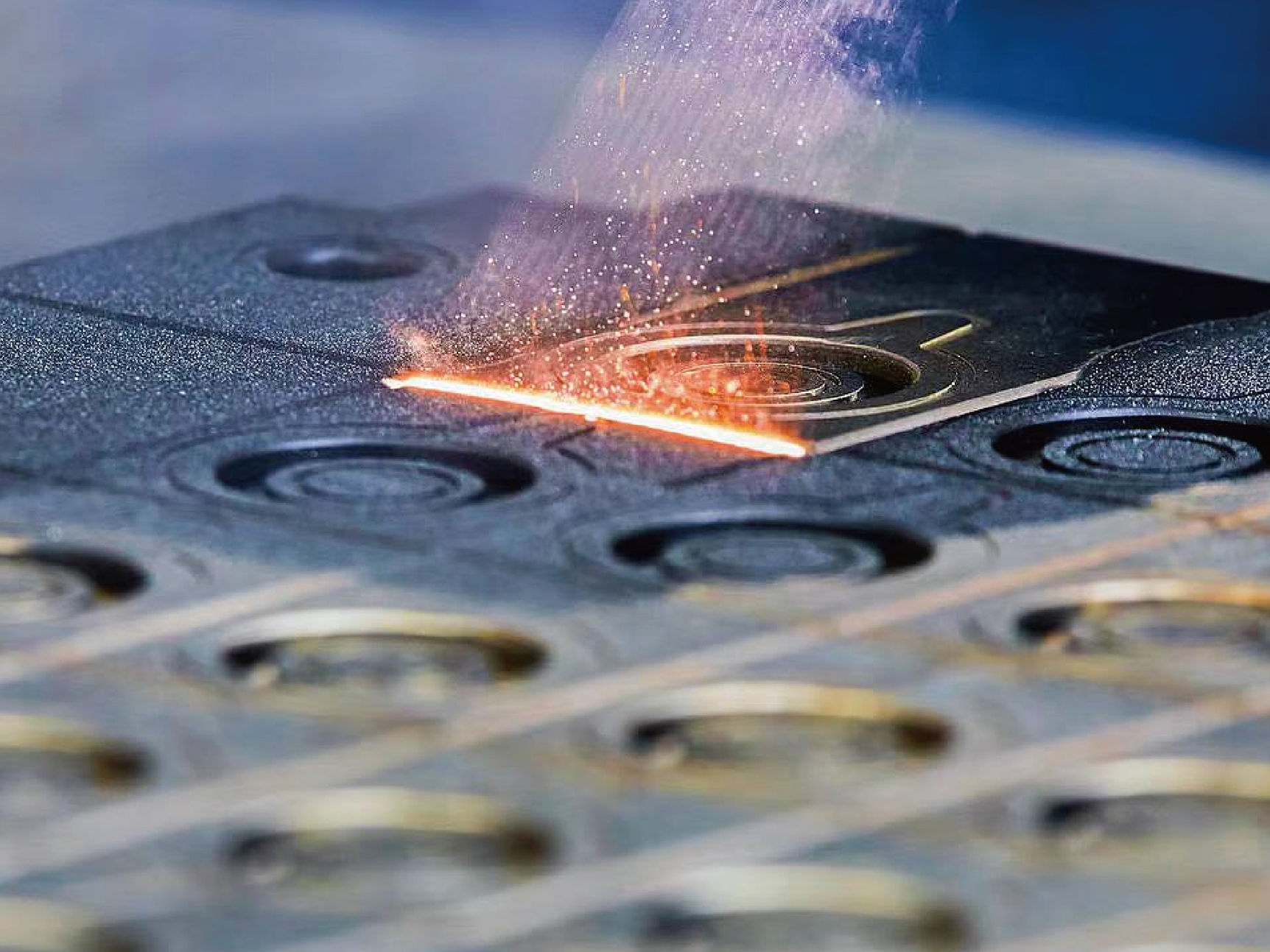

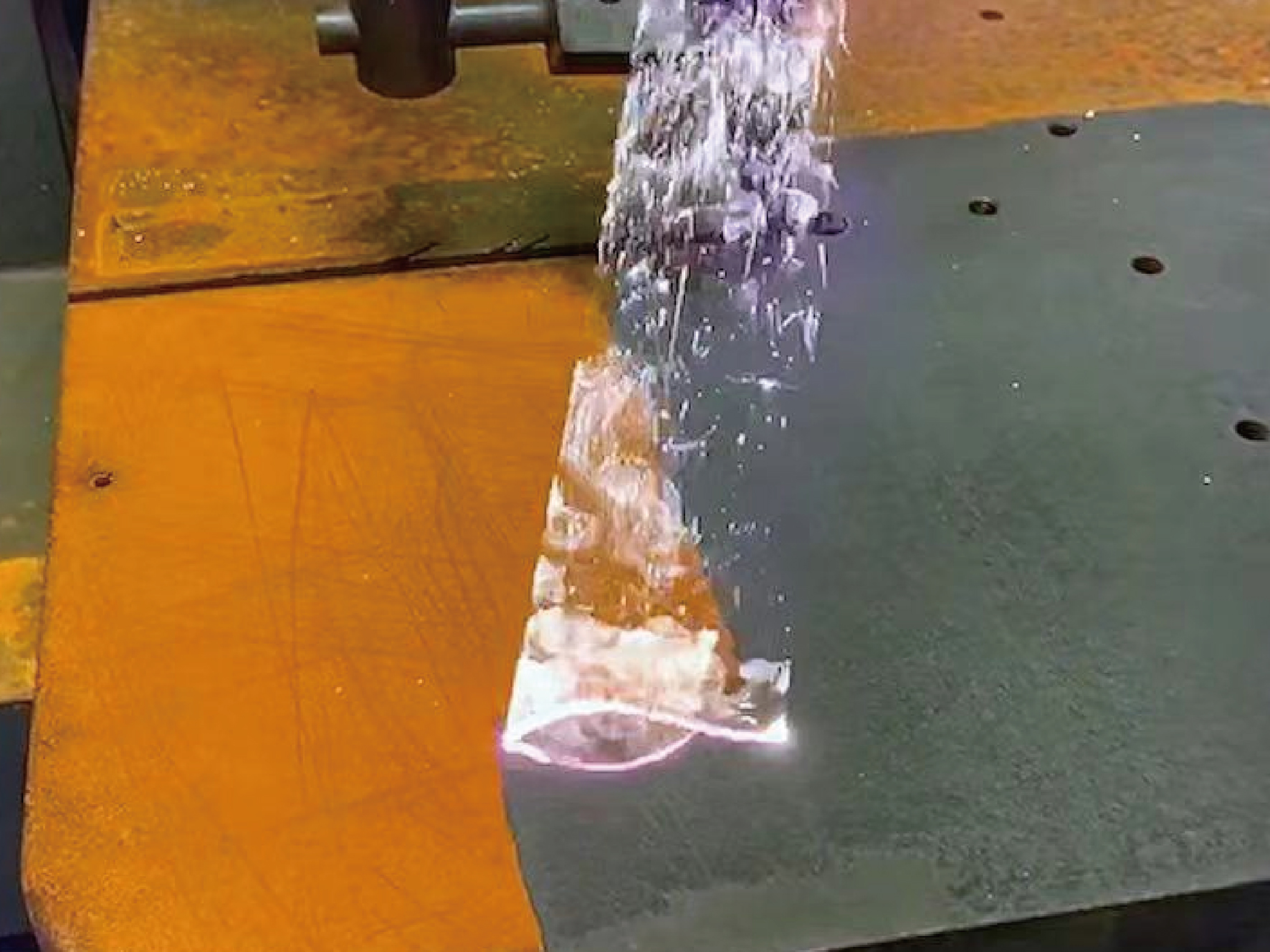

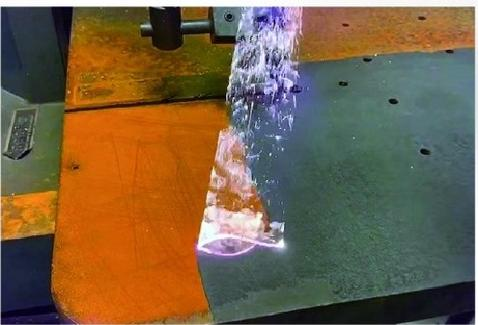

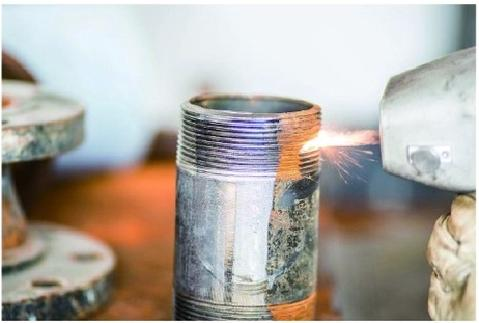

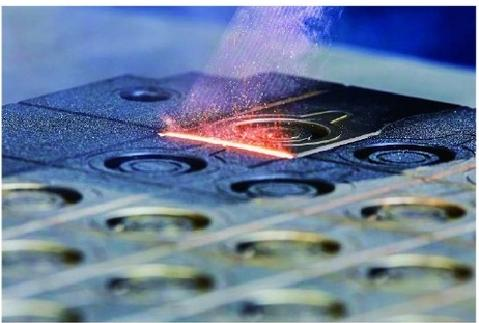

图片2 图片4  图片3



Key parameters Unit Indicator
Model   Aeolus-1000W/1500W
Average power W 1000/1500
Maximum peak power W 2000
Maximum pulse energy mJ 10
Pulse width ns 70-500(可调)

Maximum modulation frequency

KHZ 100
Centre wavelength nm 1070-1090
Fibre length m 标准10米

Handheld scanner
Minimum spot diameter (mm, 1/e²) >0.7
Scanning speed (m/sec) Max.10
Scan width (mm) Max.75


Facility Requirements
Power supply voltage 200–240 VAC, single-phase
Power supply frequency 50-60Hz
Rated power consumption 4kVA
Environmental conditions 5-40℃

Key parameters Unit Model
Supply voltage   32VDC&24VDC   or   32VDC&12VDC
Operating mode   Continuous OR modulation
Centre wavelength nm 1070
Maximum output power W 1230
Power adjustment range % 10-100
Output power fluctuation %
Beam quality   1.1
Power consumption W ≤4500(≤DC32V115A&≤DC24V 10A)or≤4500(≤DC32V115A&≤DC12V12A)
Cooling method   Forced air cooling
Operating temperature 10-45
Output connector   RQB orQCS
Output armoured cable length m 3-5
Output fibre core diameter um 10-50
Dimensions mm 456 × 402 × 133 or customised
Control method   DA/RS232/IoT
