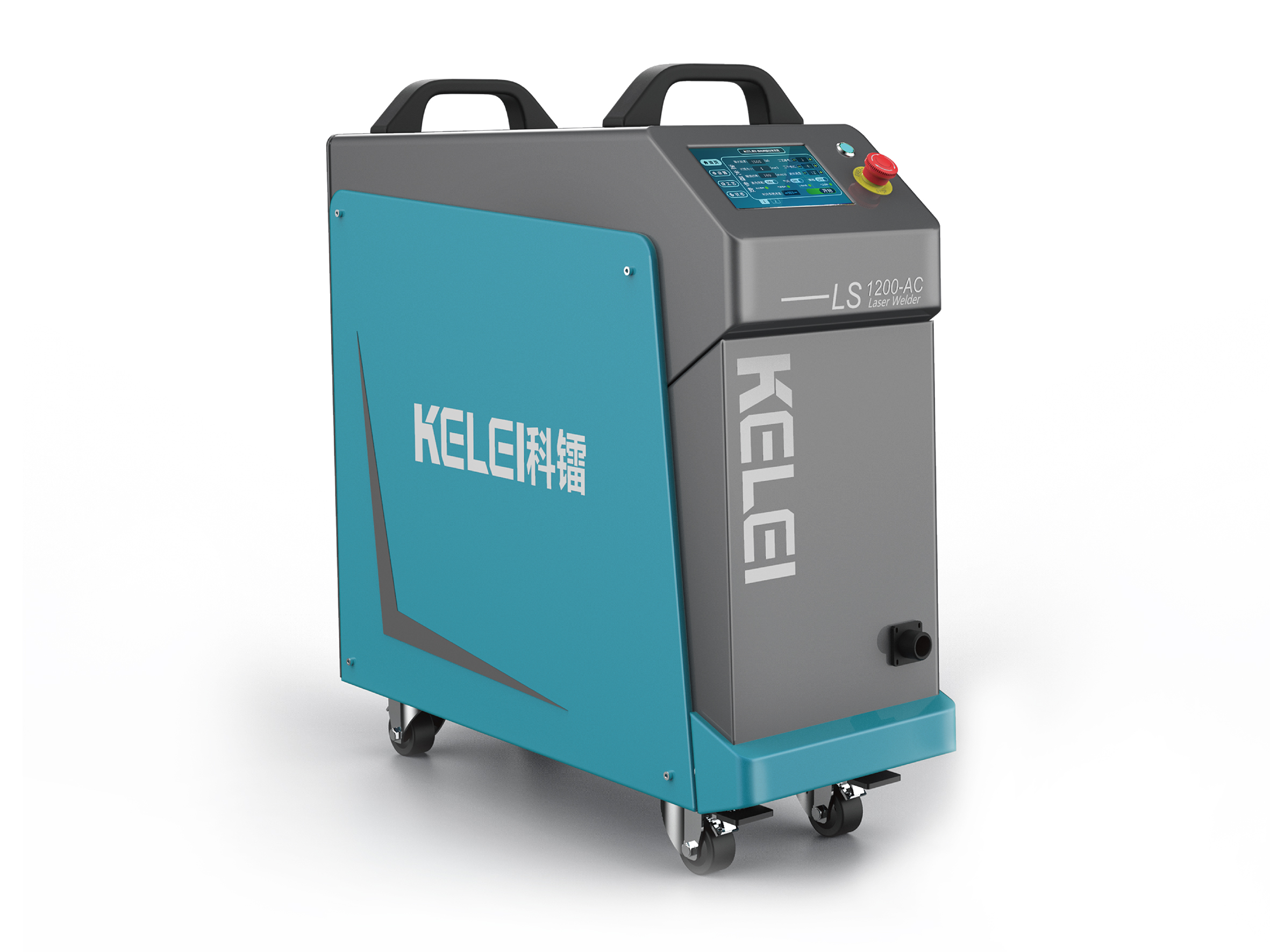

Handheld air-cooled welding machine

Thunder God Welding System – Handheld Air-Cooled Welder

3手持风冷焊接机

Key parameters	Unit	Model
Supply voltage		32VDC&24VDC or32VDC&12VDC
Operating mode		Continuous OR modulation
Centre wavelength	nm	1070
Maximum output power	W	1230
Power adjustment range	%	10-100
Output power fluctuation	%	2
Beam quality		1.1
Power consumption	W	≤4500(≤DC32V 115A&≤DC24V 10A)or≤4500(≤DC32V115A&≤DC12V 12A)
Cooling method		Forced air cooling
Operating temperature	℃	10-45
Output connector		RQB orQCS
Output armoured cable length	m	3-5
Output fibre core diameter	um	10-50
Dimensions	mm	456 × 402 × 133 or customised
Control method		DA/RS232/IoT
